LYHY is a professional manufacturer in slewing ring bearings, slewing rings, turntable bearings, including thousand of different models from outer diameter 200mm-8000mm range.
Please see details for slewing ring bearing 061.20.05220.127.116.113, 061.20.0518.104.22.1683 above if you need more details, please feel free to contact us for designing and producing
Why choose LYHY slewing bearings
LYHY is a professional manufacturer in slewing ring bearings since 1993. We can also design and make other standard and non-standard ball slewing ring bearings, roller slewing bearings and precision slewing ring bearings as per customer's different technical requirements.
Slewing ring bearing is also called slewing ring, slewing bearing, turntable bearing, and rotary bearing.
Slewing ring bearing is a bearing that able to bear axial load, radial load and overturning torque. Under normal circumstances, slewing ring bearings have their own mounting holes, lubricant holes and seal holes, to meet the different needs of the various host working under the various conditions;
On the other hand, slewing ring bearing itself has characteristics of compact structure, guide rotating convenient, easy to install and maintaining easily.
Slewing Ring Bearings------Types:
1. four point contact ball slewing ring bearings
2. double row ball four point contact slewing ring bearings(same diameter ball; different diameter ball)
3. cross roller slewing ring bearings
4. triple row cylindrical roller combined slewing ring bearings
5. ball & roller combined slewing ring bearings
6. light flanged slewing ring bearings
Detailed description of these types slewing bearings
Single row four point contact ball slewing bearings
This kind of slewing bearings can support high dynamic loads, transmitting axial and radial forces simultaneously as well as the resulting tilting moments. Applications of this kind of bearings are hoisting, mechanical handling and general mechanical engineering etc.
Single row cross roller slewing bearings
This kind of bearings can support combinations of large radial force, medium axial force and tilting moment with small or zero clearance. Main applications of this kind of bearings are hoisting and mechanical handling and general mechanical engineering etc.
Double row different ball diameter slewing bearings
This kind of bearings can support high static loads with simple structures. They are mainly used in situations with variation load position and direction and continuously rotating. Main applications of this kind of bearings are deck hoisting, mining and material handling etc.
Triple row cylindrical roller slewing bearings
This kind of bearings has high load carrying capacity. Under same loads, this kind of bearings has much smaller diameters which can make the installation much compact, as different kinds of loads are supported by different races and rollers. Main applications of this kind of bearings are hoisting, mechanical handling, mining and materials handling, offshore technology and general mechanical engineering etc.
Roller/ball combination slewing bearings
This kind of bearings can support high axial load and low tilting moments. Usually they are large diameter slewing bearings. Applications of this kind of bearings are mining and materials handling etc.
Slewing Ring Bearings------Technical Data:
Material: 42CrMo, 50Mn, or other material customers require.
Precision: P0. P6. P5.
Outside diameter: 200~9500mm
Cage/retainer: Nylon, aluminum, steel, brass or others customers require
Gear type: non-geared, internal gear and external gear, gear hardened
All LYHY slewing ring bearings are forged rings with material steel 50Mn or 42CrMo, slewing rings are machined by CNC lathe, slew bearings raceway are quenched via medium-frequency hardening with hardness 55-60HRC, turntable bearings are drilled holes by CNC drilling machine, slew gears are machined by hobbing machine with gear quenched if required, swing bearings then are grinded by grinding machine with higher precision.
Production Process of LYHY slewing bearings
LYHY Slewing Bearing Packing
Step 1: Covered with the anti-rust oil
Step 2: wrapped with the plastic film;
Step 3: Packed with Kraft paper and professional belts;
Step 4: Put into wooden box to avoid the rust or the moist;
Remark: Normally, plastic film+ Kraft +belt+ wooden box, but customized packing available,
All LYHY slewing ring bearings can be usually delivered timely, usual production time is 15-50 days based on different slew bearings diameters, sometimes slew rings will be in stock.
Slewing bearings can be offered different delivery terms, such as EXW, FOB, CIF, DDU and so on.
Also, slewing rings can be transported by different transport ways, by express (such as DHL, TNT, UPS, FEDEX and so on), by air, by sea, by truck, by railway and so on.

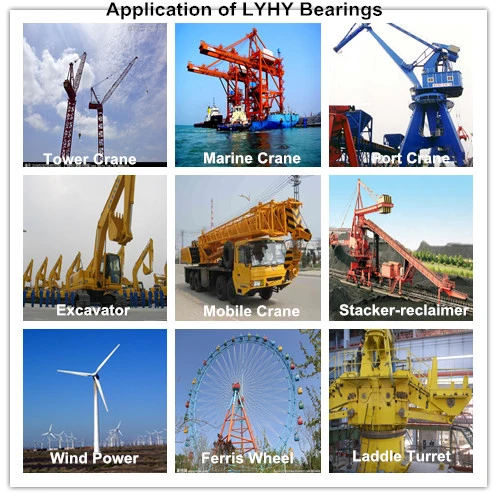

Slewing Ring Bearings------Applications:
Slewing ring bearings are widely used in industry and known as "the machine joints"
Hereunder is the specific slewing bearing applications
1. Construction machinery (e.g. cranes, excavators, loader, scraper)
2. Metallurgical machinery (e.g. for steel plant)
3. Heavy machinery equipments (e.g. mining machinery, concrete machinery)
4. Marine machinery equipment (e.g. vessel, port hoisting machine, port oil transfer equipment, onshore and offshore crane)
5. Light machinery equipments (e.g. paper machine, plastic, rubber machine, weave machine)
6. Wind power generator
7. Military products (e.g. aerospace machinery)
8. Packing machinery
Bearing with external gear
Bearing with internal gear
