High Torque Svh9 Dual Worm Slewing Gear Slewing Drive PV Tracker

Coresun Drive dual axis SVH9 slew drive gearbox for sun tracking ModelSVH9Place of OriginChangzhou,ChinaBrandCoresun DriveTypeDual AxisIP ClassIP65Output Torque7200N.mTilting Moment Torque10kN.mHolding Torque42kN.mStatic Axial Rating100kNStatic Radial Rating160kNGear Ratio60:1Efficiency40%Slewing drives are perfect for

Featured Products

Coresun Drive dual axis SVH9 slew drive gearbox for sun tracking


Model

SVH9

Place of Origin

Changzhou,China

Brand

Coresun Drive

Type

Dual Axis

IP Class

IP65

Output Torque

7200N.m

Tilting Moment Torque

10kN.m

Holding Torque

42kN.m

Static Axial Rating100kNStatic Radial Rating

160kN

Gear Ratio

60:1

Efficiency

40%

High Torque Svh9 Dual Worm Slewing Gear Slewing Drive PV Tracker

Slewing drives are perfect for situations requiring both load-holding and rotational torque from the same gearbox.Ttypical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger derricks, and automotive lifts.



The performance ranges from 6kNm to 220kNm of holding torque, 200Nm to 63kNm of output torque, 500Nm to 271kNm of overturning moment load capacity, and gearbox reduction ratios of 30:1 up to 156,600:1. The mounting can be done horizontally, vertically, or across a combination of multiple axes.

Vertical installation

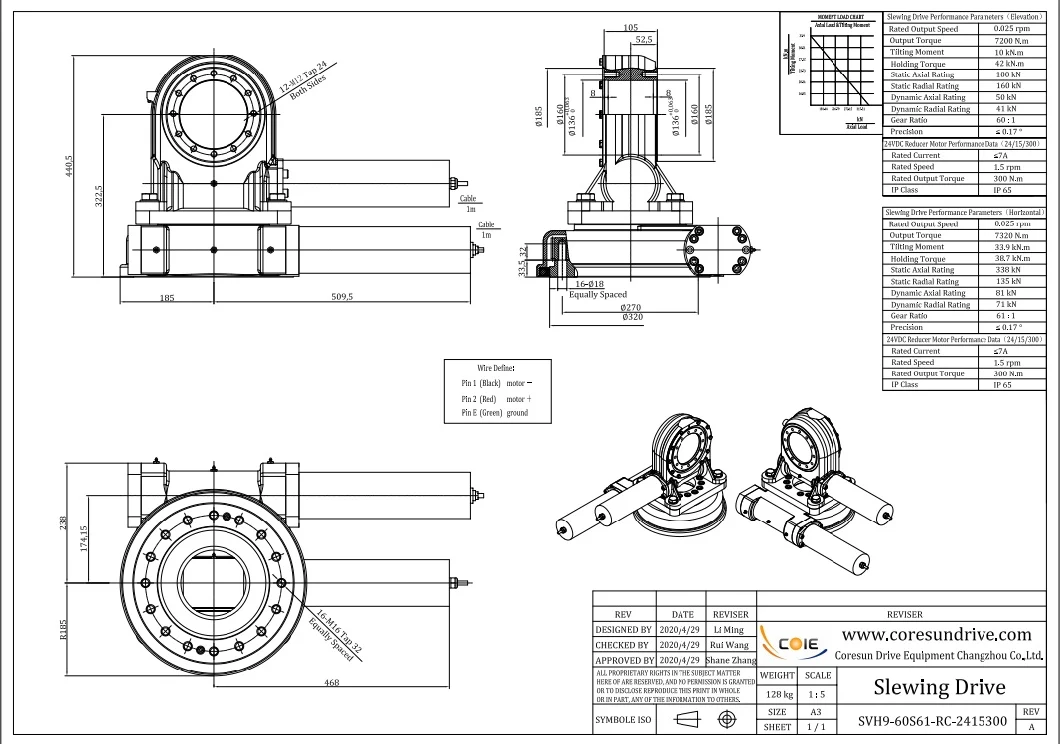

It is advised to mount the slewing drives referring to attached drawing upside in solar applications for better protection.
For other applications, the mounting directions shall be based on the evaluation of the protection level and it shall be better for better protection.



Horizontal installation
It is advised to mount the slewing drives upside down on the azimuth axis in solar applications for better protection and add protection for the elevation axis.
For other applications, the mounting directions shall be based on the evaluation of the protection level and it shall be better for better protection.

Tilting Moment Torque: Torque is the load multiplied by distance between the position of load and the center of slewing bearing. If the qorque generated by load and distance is greater than the rated tilting moment torque, slewing drive will be overturned.

Radial load: Load vertical to the axis of slewing bearing

Axial load: Load parallel to the axis of slewing bearing

Holding torque:It is the reverse torque.When the drive is rotating reversely, and parts are not damaged,The maximum torque achieved is called holding torque.

Self-locking: Only when loaded, the slewing drive is not able to reverse rotate and thus called self-locking.

Mechanism Characteristics

1.Double output structure
2.SVH9 is made by framework oil sealing structure,so the waterproof and dustproof is much better than normal oil sealing production.
3.Special heat treatment,corrosion resistance
4.Built-in eccentric mechanism, ensure the accuracy requirements of the slewing drive
5.SVH9 have 8 bolts on worm shaft side,the original model just have 4 bolts.So,the axial load of SVH9 is more steady than the other model.

SVH9 dual axis slewing drive gearmotor is available for 10-18pcs panels solar tracker application

For 10-18pcs solar panels tracking design

For 500-800kg load weight application


Production Photo and Application
High Torque Svh9 Dual Worm Slewing Gear Slewing Drive PV Tracker
High Torque Svh9 Dual Worm Slewing Gear Slewing Drive PV Tracker
SVH9 slewing drive slewing gearbox with 24VDC motor is certificated by CE
High Torque Svh9 Dual Worm Slewing Gear Slewing Drive PV Tracker
